Suitable for all motors
900 Series Permanent Magnet Synchronous Inverter
The 900 series permanent magnet synchronous frequency converter is a high-performance synchronous vector frequency converter developed by our company. Adopting high-performance vector control technology, with low-speed high torque output, good dynamic characteristics, strong overload capacity, rich and powerful functions, and stable performance.
-
- AC 1PH 220V 0.75kW~2.2kW
- AC 3PH 220V 0.75kW~75kW
- AC 3PH 380V 0.75kW~630kW
- Availability: OEM/ODM, Minimum Order Request
Description
Characteristics of 900 Series Permanent Magnet Synchronous Inverter:
- Refined design, strong temperature resistance, high power density, higher energy conversion efficiency, and more stable operation.
- Efficient and precise control performance. Support vector control and V/F control, up to 0-500Hz, suitable for high-speed motor requirements. Carrier frequency: 0.5kHz~16kHz, can be automatically adjusted to optimize load matching, reduce noise and loss.

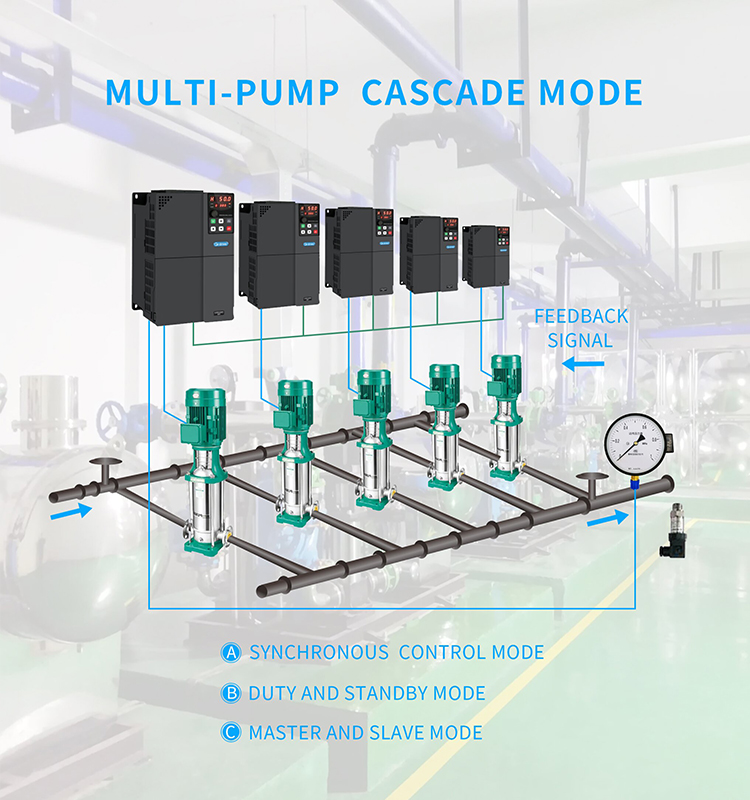

- Flexible application adaptability. Multi speed operation: By controlling the terminals, up to 4 speeds can be achieved to meet complex process requirements. Built in PI control: realizes closed-loop control, accurately adjusts parameters such as flow and pressure.
- Strong environmental adaptability. Protection level: IP20， Suitable for indoor environments without dust or corrosive gases. Communication support: Built in Modbus protocol, easy access to automation control systems, enabling remote monitoring.
- Convenient operation and maintenance. Supports multiple input methods such as panels, terminals, analog signals, and communication, making operation more flexible. It can be remotely started and stopped through the operation panel, control terminals, or communication. Adaptive noise reduction: Automatic adjustment of carrier frequency, optimization of electromagnetic compatibility (EMC), and reduction of interference.
Application of 900 Series Permanent Magnet Synchronous Inverter:
- Permanent magnet synchronous motor frequency converter is a general-purpose high-performance vector frequency converter, mainly used to control and regulate the speed and torque of three-phase AC synchronous motors. This permanent magnet frequency converter has the core advantages of high-precision control, strong overload capacity, and wide environmental adaptability. It is suitable for multiple scenarios such as industrial automation, fans and pumps, and heavy-duty machinery, balancing efficiency and reliability. It is an ideal driving solution for complex working conditions.
